FMZ VFD- 90kW 400V H580-90RG/110RP-T4, H580-Series
৳ 230000
৳ 242000
Product: Inverter/Variable Frequency Drive (VFD)
Model : H580-90RG/110RP-T4
Capacity : 90KW, 120HP
Input: 3PH, 380-440V, 50-60Hz,
Output: 3PH, 440V, 0-400Hz, 176A
Brand: FMZ,
Origin: China
Warranty: One Year
Application: Elevator/Escalator/Lift/Air Compressor/Conveyor Belt/Injection Molding Machine or Heavy Duty portion.
Mobile Number: +880-1750668006
See More Products, Visit our Website: www.puresolutionbd.com

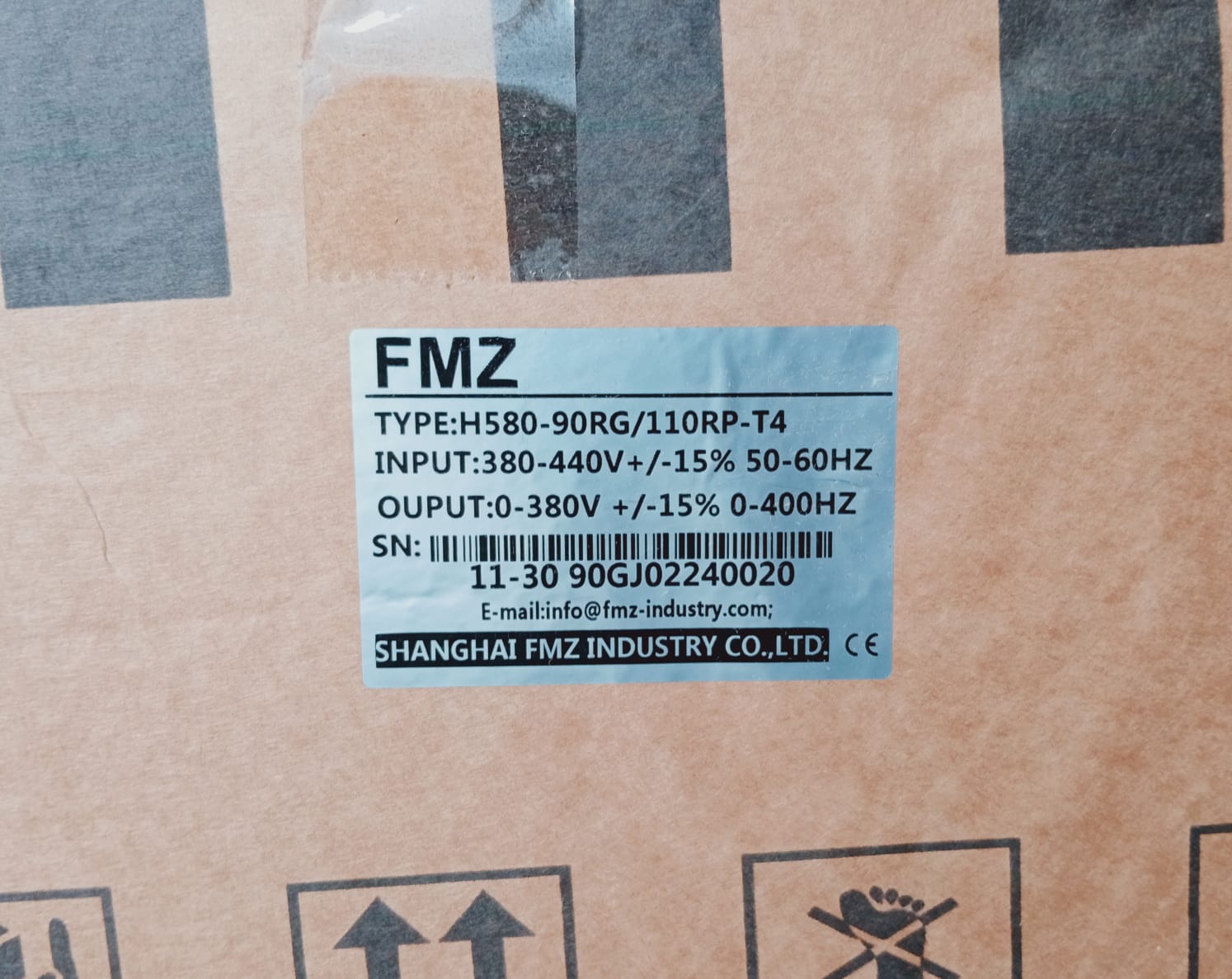

Model Name : H580-90RG/110RP-T4
Series : H580-Series
Input Voltage – Phase : 380-440 V – 3 Phase
Motor Power Range : 120HP – 90KW
Frequency : 0-400Hz
Frame Size : A5
IP Level : IP 20
Normal Duty* Amps : 210A
Heavy Duty** Amps : 176A
Weight: 52Kg
Dimensions : (H*W*D)mm 700*473*307
-
H580-90RG/110RP-T4
-
China
-
01 Year
-
China
