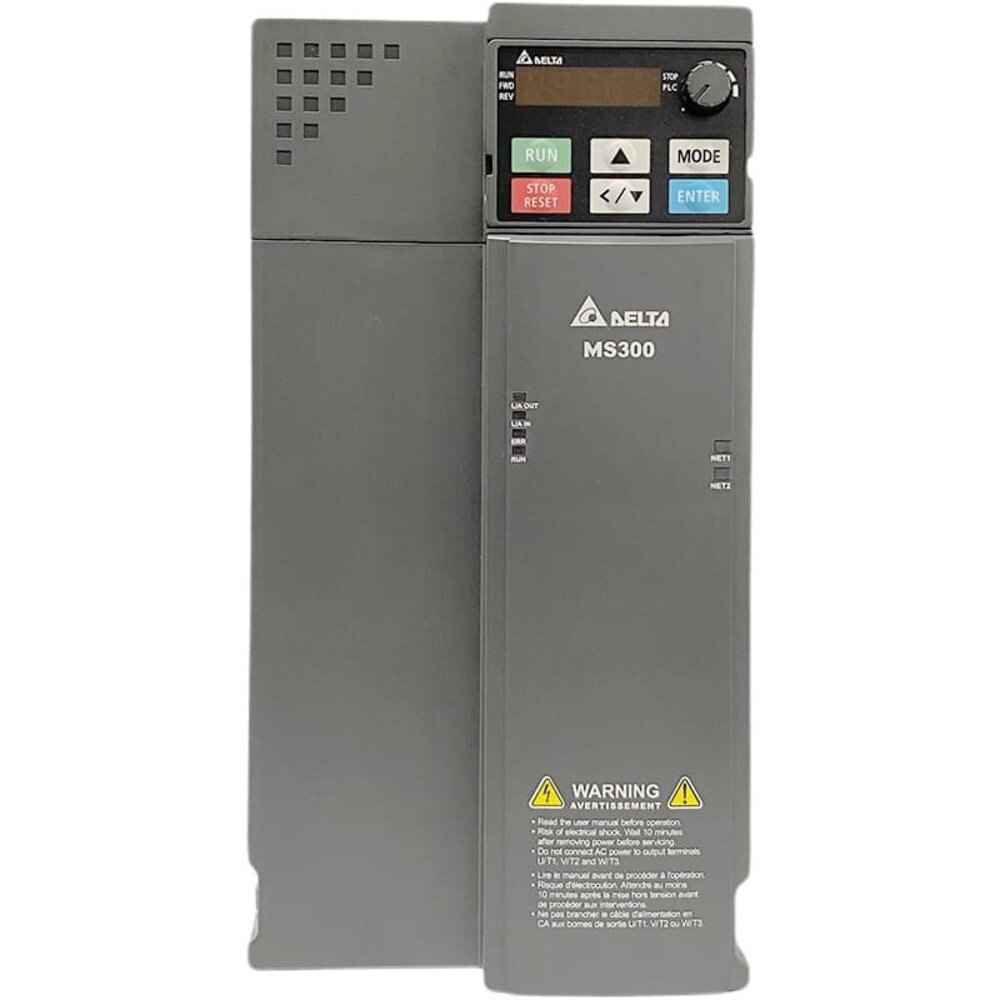

Delta VFD 11kW 400V VFD25AMS43ANSAA-MS300
Product: Inverter/Variable Frequency Drive (VFD)
Model : VFD25AMS43ANSAA
Capacity : 11KW, 15.0HP
Input: 3PH, 400-480V, 50-60Hz,
Output: 3PH, 0-480V, 0.1-599Hz,(ND)28A,(HD)25A
Brand: Delta,
Origin: Taiwan, Product of China
Warranty: One Year
Mobile Number: +880-1750668006
See More Products, Visit our Website: www.puresolutionbd.com
Model Name : VFD25AMS43ANSAA
Series : MS-300
Input Voltage – Phase : 460 V – 3 Phase
Motor Power Range : 15.0HP – 11KW
Frequency : 0-599Hz
Frame Size : A5
IP Level : IP 20
EMC Filter : Optional
Normal Duty* Amps : 28A
Heavy Duty** Amps : 25A
Weight: 5Kg
Dimensions : 5.12 (in) x 9.84 (in) x 7.83(in)
* Normal duty: rated current 120% for 60 seconds; 150% for 3 seconds
** Heavy duty: rated current 150% for 60 seconds; 200% for 3 seconds
-
